Height – Fits vans between 180-210cm
Connecting Door – Suitable for EU Vans (left hand drives)

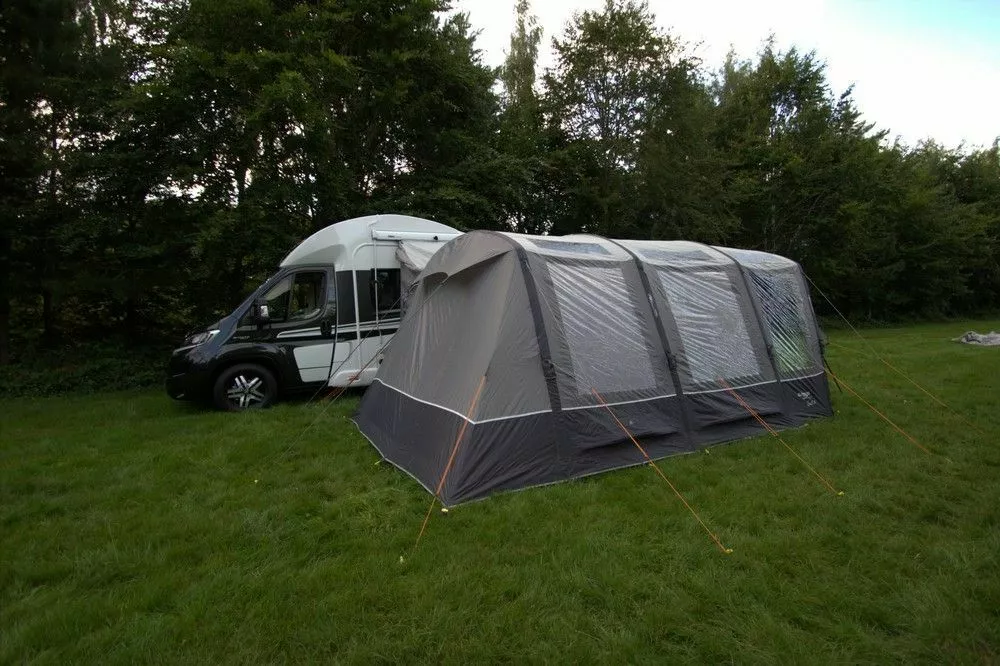

The Vango Galli RSV Low awning is the European version of the UK Galli Low – found here – and will fit onto European vans, where the driver’s side door is on the opposite side. The Galli RSV low features the Airbeam system, allowing it to be pitched very quickly, and has a multitude of connection options, available for easy connection to van. Furthermore the Galli Low RSV has the exceptional 420 Denier, Double Ripstop fabric, making it versatile, strong and durable, allowing it to last over many years. The Galli has been highly successful because of the layout, allowing it to sit side to side with the van, and also take two inner tents, giving sleeping space for four people.

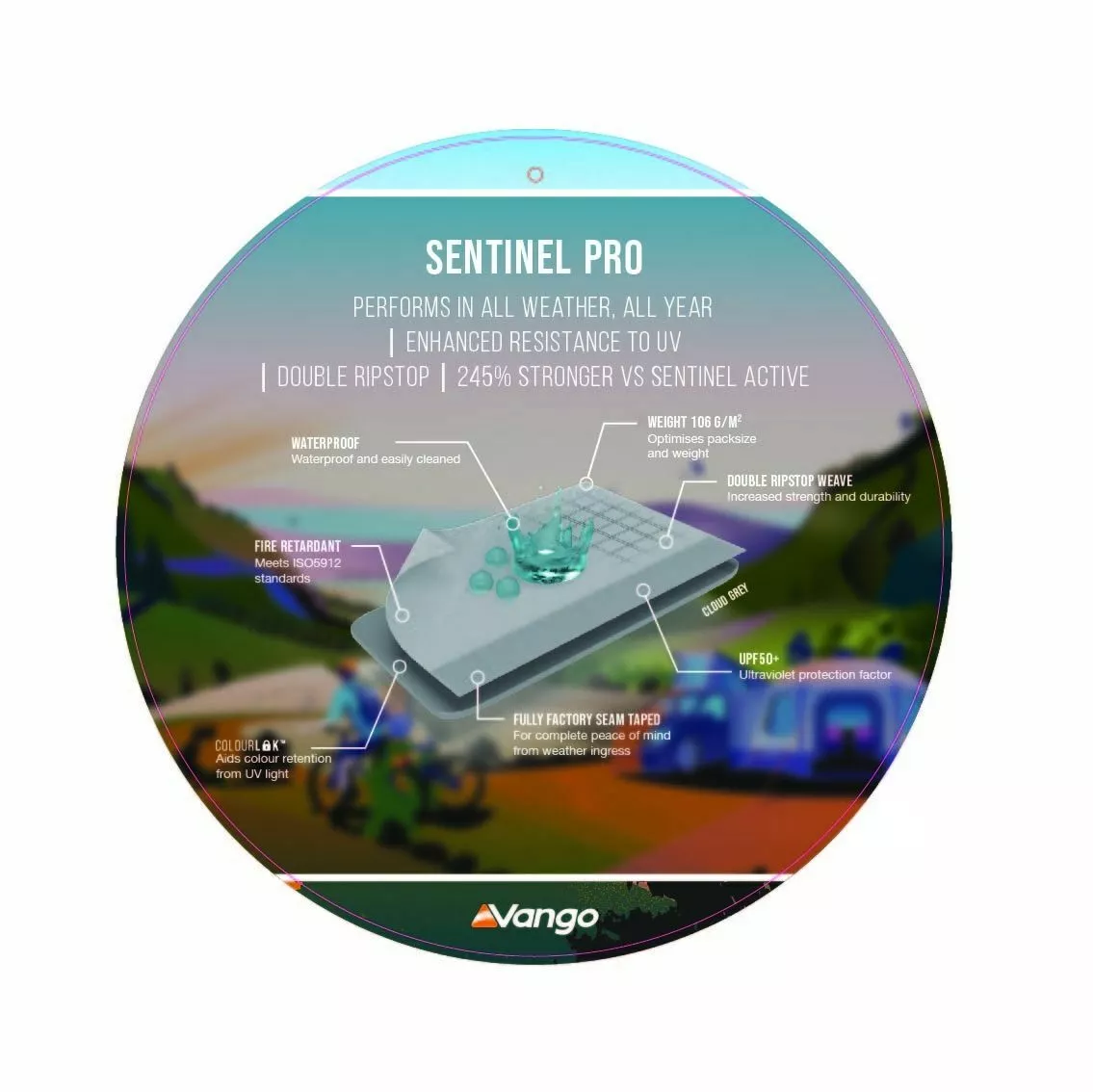

NEW Sentinel Pro 420 Denier Fabric
ColourLok to reduce effects of UV. Fading
Fitting onto a Fiamma F45 / Omnistor rail – get a 4mm/6mm rail fixing kit below with bundles.
Quick to pitch due to Air system
Tension Band System – adds stability in poor weather conditions.
UK Version available separately

Fabric Denier	420 Denier (RipStop) DetailsDenier – a measurement used to determine the thickness of the tent flysheet. It relates to the fibre thickness, or thread counts used. The thicker the fabric, generally the stronger, and more durable the fabric will be. The denier really reflects the lifetime to be expected of the tent, and how quickly, it will be affected by UV Degradation.
Width (cm)	320
Features	Fitting Options Features pre-attached kador rail 6mm 8m storm straps to tie it over van Pole and clamp kit included for those with a gutter rail Best solution is to attach to Fiamma F45 or Omnistor rail using a 4mm/6mm fixing kit (sold separately) Fabric Technology Sentinel Pro 420 Denier Polyester 6000mm Waterproof and easy to clean Weighs 106g/m2 – optimised strength and durability. Double Ripstop Weave Fully Taped Seams UPF 50+ – sun protection Fire Retardant to ISO5912 ColourLok fabric slows fading of polyester
Specifications	Sentinel 420 Denier Fabric – tried and tested across the collection or motorhome awnings Airaway inflatable structure, offers excellent stability, height and living space. Fully sewn-in groundsheet for added convenience, comfort and luxury Airspeed valve system – perfect for easy inflation of tent, simply clip the pump into the beam, and away you go. Large diameter superbeams for the high-spec denier Pre-attached 6mm kador strip – will fit into most vans Tension Band system, allows you to use clips to stengthen the structure when its windy. Webbing storm straps for securing it down Line-lok guyline runners High visibility guylines are easier to see in the dark Large windows provide bright and airy feel Mesh PVC side windows for added ventilation Zipped privacy curtains maximise privacy Door in connecting panel Easy-access doorways Rear porch rolls away when detached from van, and not in use Can hold two optional inner tents Airbeam pump included Cable entry point for electrical hookup Weather tested to EU standards
Recommended Use	Perfect for attaching the EU motorhomes and camper vans, with a height of 180-210cm

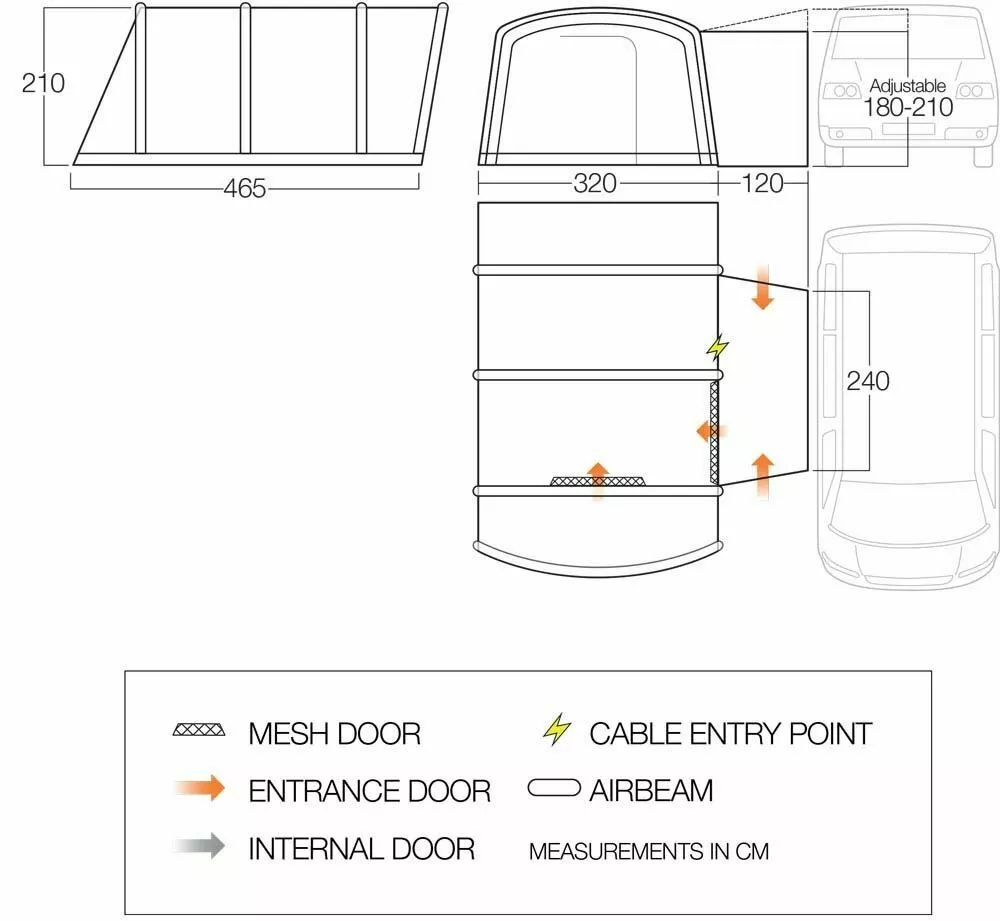

Pitching Area (cm)	500 * 350
Pitching Time	10 minutes
Fire Retardant	Yes DetailsFire Retardant – all modern tent fabrics are fire-retardant under EN5912 European Safety Laws. Caution with fire must always be used, as flame retardant fabrics, will still catch fire given the right circumstances.
Number of Poles / Beams	4 Beams, plus bracer beams
Poles or Air	Vango AirBeam™ DetailsMost tent structure are either Airbeam or Poled in design, both have advantages and disadvantages. Air tents are quicker to pitch, but more expensive when compared to traditional pole style tents. Some tents are hybrids, and combine poles and air technologies.
Poles Diameter / Beam Size	Superbeams – 615 * 13cm
Floor Dimensions	465 * 320
Supplied With	Double action pump with pressure gauge. Pre-attached 6mm kador strip – the most common method of attachment Roof bar attachment tabs. Sleeve for pole & clamp Steel rock pegs and mallet Wide-mouth carry bag with compression straps. Skytrack II
Pack Size (cm)	L78.0 x H44.0 x W42.0cm
Skin	Double DetailsDouble Skin Tent – A tent with an inner bedroom and a flysheet, most family tents are designed as a “Double Skin tent”, as it makes the tent more comfortable, and lessens the effects of condensation.
Weight (kg)	26.60
Length (cm)	465
Awning Type	VW Style Drive-Away DetailsSeasonal: A caravan awning specifically designed for touring, and temporary camping pitches. Ideal for fair weather campers, needing an awning for shorter trips. Usually uses lighter fabrics, for easier portability, and easier pitching. Residential: Ideal for those camping for longer durations, wanting an awning that can be left pitched all season, or for a month or more at a time. Residential awnings usually use heavier weight fabrics, designed to last longer, and not fade as fast in the UV sunshine rays. DriveAway VW Awnings: Designed to go onto VW or similar vans, or motorhomes with the correct attachment height. Can be left free-standing at the site if you need your vehicle to get off-site. Fixed VW Awnings: Reliant on the van or motorhome for the structure of the product. Van cannot be removed offsite once the awning is set up.
Colour	Cloud Grey
Fitting-Height	180-210cm
Kador Length (cm)	248
Manufacturer	Vango Airbeam
Tent Collection	Vango Airbeam Collection
Year of Manufacture	2021
Hydrostatic Head (mm)	6000 DetailsHydrostatic Head (Tents) – a waterproof rating for technical fabrics measured in mm. The higher the rating the more waterproof the fabric is. A rating of 1500mm is deemed waterproof, but on a tent, look for a rating of 3000 or higher. Measured by the height of water column a fabric weave can take before it begins to “sweat”. “Polycotton” tents will not have a Hydrostatic Head level, as they are not treated for waterproofing.
Berth	4 Man DetailsBerth – This shows the number of people that the tent can sleep within the inner tents of a model of tent, in line with the industry standard. Normal procedure is to look for a slightly larger tent, for example, a family of four usually purchase a five or six berth tent, to give added room and comfort.
Height (cm)	210 (connection height 180-210)
No. Bedrooms	2 Bedrooms
Doors	1 Front and 1 Side Door
Flysheet Fabric	420 Denier polyester flysheet, with 6000mm waterproofing DetailsPolyester – a synthetic fibre, made from polymer units to create a textile fabric. Polyester is the most popular fabric for tent manufacturing, as it is durable, reliable and lighter in weight. Polyester does not breathe though, which creates more condensation. Polycotton – a blend of polyester and cotton, primarily cotton (usually around 65% cotton / 35% polyester split). Polycotton is a more natural fabric for camping, as it is breathable, far more durable material, reducing the effects of condensation. Offers greater versatility in hot and cold climates. Ripstop Nylon – a durable material used in tents which is strong and repairable due to its Ripstop properties.
Groundsheet Fabric	Oxford polyester groundsheet (sewn-in)
Inner Fabric	All inners are sold separately
Window Fabric	Diamond Clear PVC windows with zipped privacy curtains.
SKU	AWPGALLI C3YA3B
